1. The sand is uniform, and the amount of sand is convenient and adjustable.
2. Easy to operate, high efficiency.
3. The machine can improve the quality of sand and reduce dust pollution when used in combination with dust collector.

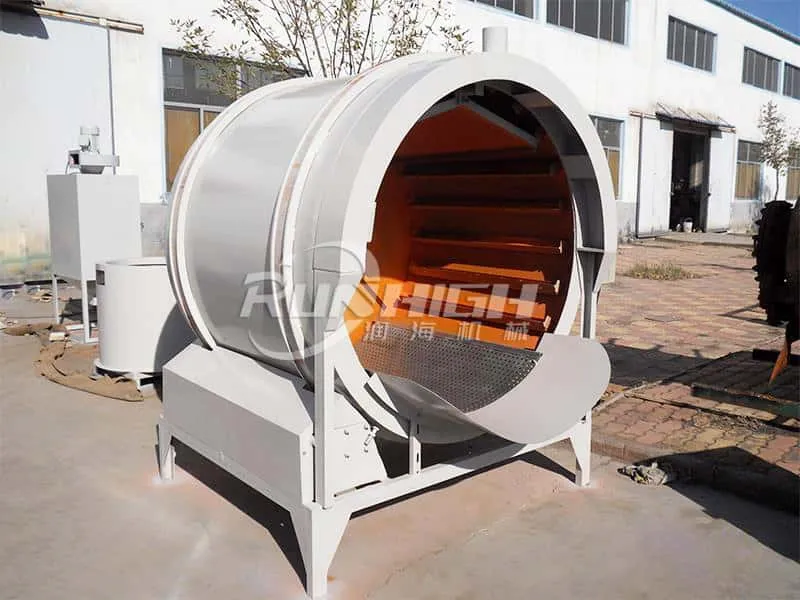

HLS type sand machine is the necessary and ideal equipment for surface layer shell hanging sand in investment casting industry. The machine has the following features:
1. The sand is uniform, and the amount of sand is convenient and adjustable.
2. Easy to operate, high efficiency.
3. The machine can improve the quality of sand and reduce dust pollution when used in combination with dust collector.
Drum type sand machine description | unit | HLS-120 | HLS-140 |
---|---|---|---|
Motor power | Kw | 0.75 | 1.1 |
Reduction type number | WPA70 | WPA80 | |
Reducer speed ratio | 1:40 | 1:40 | |
Primary drive mode | belt drive | belt drive | |
Two-stage transmission mode | a chain drive | a chain drive | |
Leached sand rate | m³/h | 5 | 5 |
Disk speed | r/min | 12 | 12 |
Dust collecting aperture | mm | 100 | 100 |
Number of dust removal ports | 2 | 2 | |
External dimension | mm | 1240×1040×1850 | 1440×1040×2050 |
weight | Kg | 300 | 350 |
